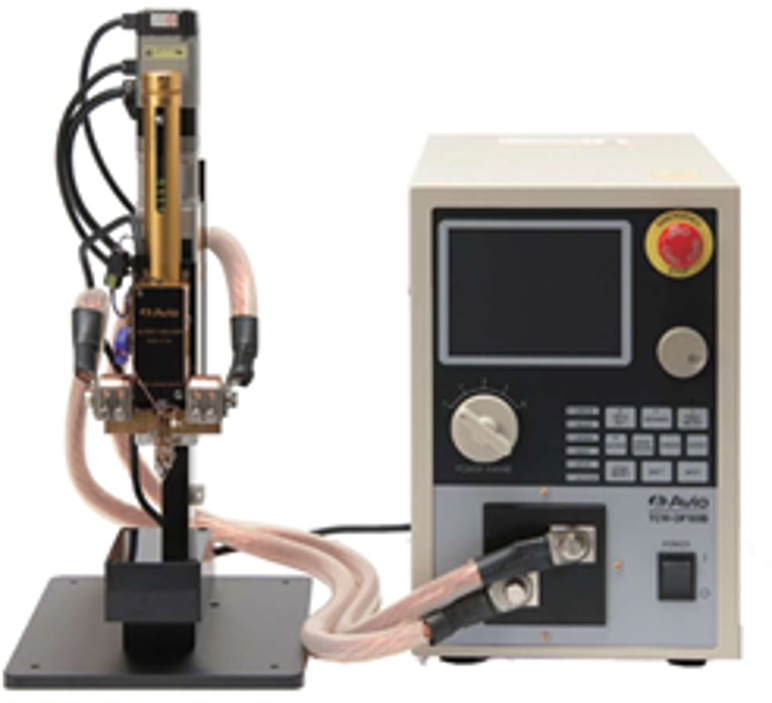

TCW-DP100B Displacement pulse heat power supply

Contact

SKU: TCW-DP100B Status: Out of stock

Ultimate Pulse Heat Controller Concurrency Control of Temperature and Dissplacement

High-precision displacement control. As displacement amount is controlled by feedback with a resolution of 1 μm, a uniform amount of penetration is achieved.
Wide Various monitoring functions (temperature/displacement).
Digital PID control method realizes a high-speed and high-precision temperature profile, and that supports welding of fine wires and fine workpieces.
Release function. After heating, it secures the thickness of the solder between the workpieces.
4-Steps heating. Various temperature profiles enable to support wide variety of applications.
Built-in controller function driven by electric slider
User interface. RS-232C & I/O are equipped as standard, it can be easily connected to external devices and can be mounted on an automatic machine.

Item	TCW-DP100B
Drive unit	NA-201PB-B
Heating temperature	Room temperature ~600°C 1°C step, E type/J type (Option) Room temperature ~900°C, K type (Option)
Heating time	0.00 - 99.99sec.
Rated capacity	750VA Duty cycle 50%
Heat control	4 steps
Monitor function	Temperature, displacement, work height
Motor resolution	1μm
Moving speed	1 to 250.0mm/sec
Displacement control resolution	1μm
Interface	RS-232C, I/O
Transformer	Built-in
Transformer secondary voltage	0.88V, 1.24V, 1.75V, 2.47V, 3.5V
Power source	Single phase AC 200 - 240V ±10% 15A
Dimensions/Weight	W220 × D465.6 × H338 (Excluding protrusions) 23Kg
