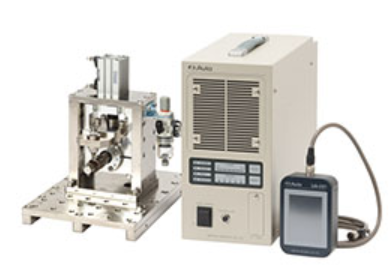

Small Size Ultrasonic Metal Welder / Simplified Head Type

Small Size Ultrasonic Metal Welder / Simplified Head Type

Contact

SKU: SW-D600S-48 Status: Out of stock

Describe
Review

A low-cost ultrasonic metal welder suitable for joining Corson copper for hoop materials, as well as R&D for joining Al foil, etc.

Small, inexpensive model with minimal functionality
Compact pressure head for space-saving installation
High energy efficiency with high frequency 48kHz
Oscillator is easy to install in automation
Various Control Mode ( Time / Peake Power / Energy / External Sensor )
Easy to read and to operate by TFT touch panel
Monitoring function to judge whether the joining is good or bad (monitor value, OK/NG judgment)

Specifications:

Items	SW-D600S-48
Frequency	48.5kHz
Rated Output	600W (Continuous Oscillation 300W)
Oscillation Method	Digital ATHMOS
Amplitude Setting	30～100% (1% step)
Control Mode	Time/Energy/Peak Power/External Sensor/Continuous Oscillation
Monitor (for OK/NG)	Frequency/Time/Energy/Peak Power/External Sensor
Number of Program	31 programs
Interface	I/O /Analog/RS-232C/LAN/CF Card
Input Power	Single-Phase AC100～240V±10%
Power Consumption	900VA
Size	W150×D370×H310mm
Weight	Approx. 8.5kg

Pressure Head:

Items	Simplified Head for small-sized ultrasonic metal welder
Pressure Range	60～250N
Drive	Air Cylinder (Φ25)
Pressure Method	Manual operation of regulator valve
Stroke	20mm
Air Supply	0.5MPa
Size	W180×D250×H233.5mm (Excluding protrusions)
Weight	Approx. 10kg
