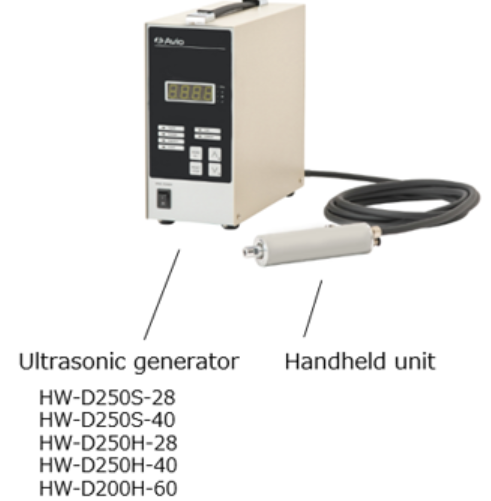

Ultrasonic Handheld Welder HW-D Series

Contact

SKU: HW-D Series Status: Out of stock

Describe
Review

Support reliable "Monozukuri" (manufacturing) Handheld model which contributes to shorten processing time and quality improvement!

HW-D series realizes stable welding at high speed. In addition to selecting the most suitable control mode for the work, welding control is also enhanced.
Furthermore, it is a hand-held type ultrasonic welder that can be linked with external equipment.

Digital oscillation tracking function
Selectable oscillation control mode
Welding result display / Error code display
Many Interfaces

High power 60kHz for fine work

Model		High-end type			Standard type
Model		HW-D250H-28	HW-D250H-40	HW-D200H-60	HW-D250S-28	HW-D250S-40
Maximum output		280W		240W	280W
Rated output		250W		200W	250W
Continuous output		180W		140W	180W
Frequency		28kHz	40kHz	60kHz	28kHz	40kHz
Oscillation method		Digital ATHMOS（Automatic frequency tracking）method
Oscillation control mode		Timer, Energy, Peak power, Continuous oscillation (Selectable)
Setting range	Timer	0.01 to 10.00s　(0.01s step)
	Energy	10 to 3000J　(10J step)
	Peak power*	50 to 250W		40 to 200W	50 to 250W
	Oscillation	Valiable 30 to 100%　(5% step)			Fixed (100%)
	Up slope	50/100/200/500ms　Selectable			50ms Fixed
Display		7 segment 4 digit LED, Status display LED
Welding result display function		Frequency(kHz), Oscillation time(s), Energy(J), Peak power(W) (Final result)
Protection function		Phase, Over current, FET, Over voltage, Over heat, Over time
Interface		I/O, Analog
Power input		AC100 to 240V single phase, 50/60Hz			AC100V　50/60Hz
Power Consumption		370VA		300VA	370VA
Environmental temprature		5 to 40℃
Environmental humidity		30 to 85%, No condensation
Size		W100×D250×H210mm
Weight		2.5kg
