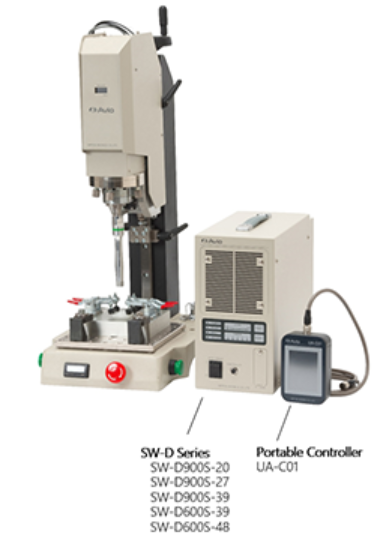

Ultrasonic Generator SW-D Series

Contact

SKU: SW-D series Status: Out of stock

Describe
Review

High-speed・automation machine type line up to support reliable “Monozukuri” (manufacturing)

SW-D series has 5 models of 20kHz～48.5kHz, 600W/900W with various control mode and monitoring function, which is applicable to wide variety of work.
It is the high-end ultrasonic welder with Ethernet capability and tractability.

High-speed and stable welding
Small size, Vertical type, and Easy setting with remote control
Selectable Oscillation Mode for Optimal Welding Condition
Oscillation Amplitude is Continuously Variable between 30-100%
Real-time Monitoring for OK/NG Checking

Many Interfaces for IoT.

Items	SW-D900S-20	SW-D900S-27	SW-D900S-39	SW-D600S-39	SW-D600S-48
Max. Output Power	900W (In continuous : 400W)			600W (In continuous : 300W)
Frequency	20kHz	27kHz	39kHz	39kHz	48.5kHz
Oscillation Method	Digital ATHMOS
Amplitude Adjustment	30～100% (1% step)
Oscillation Control Mode	Time / Energy / Peak Power / External Sensor / Continuous
Monitor Function (Pass / Fail Judgement)	Frequency / Oscillate Time / Energy / Peak Power / External Sensor
Parameter Memory	31
Interface	I／O / Analog / RS-232C / LAN / CF Card
Input Power	Single Phase AC100～240V ±10%
Power Consumption	1,350VA			900VA
Operating temperature	5~50℃ (No freezing)
Operating Humidity	Less than 90% (No condensation)
Dimension	W150×D370×H310mm (Including protrusions)
Weight	Approx. 8.5kg
