PMC Series
PMC Series - General
Contact

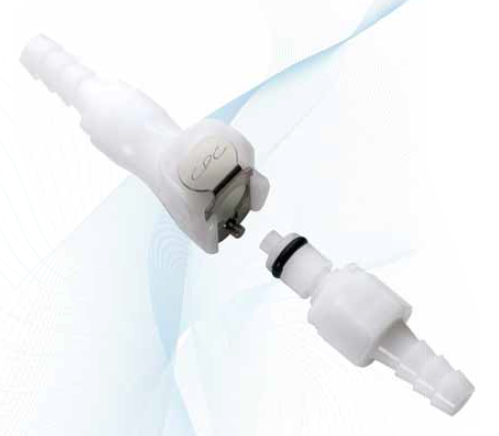

PMC Series couplings have a 1/8" flow are used in a wide variety of general-purpose applications. Featuring the CPC thumb latch, the PMC is easier to use than ball-and-sleeve connector designs. One-hand connection and disconnection and integral terminations make the PMC the choice for ease of use and manufacture.
OPERATING CONDITIONS (FLUID TRANSFER)
| Pressure: | Vacuum to 120 psi, 8.3 bar |
|---|---|
| Temperature: | -40°F to 180°F continuous, -40°C to 82°C continuous |
MATERIALS:
| Main components and valves: | Acetal |
|---|---|
| Thumb Latch: | Stainless steel |
| Valve spring: | 316 stainless steel |
| External springs and pin: | Stainless steel |
| O-rings: | Buna-N |
OTHER
| Color: | Natural white, others available |
|---|---|
| Tubing range: | 1/16" to 1/4" ID, 1.6mm to 6.4mm ID |
| *NOTE: For 1/16" ID tubing, maximum tube OD is .150". | |
CV VALUE
| Cv ~0.51 (7.35) max | |
| Cv ~ 0.26 (3.75) max | |
| Cv ~ 0.24 (3.46) max | |
| Cv values are based on gpm and psi, and Ipm and bar (shown in parentheses). |
