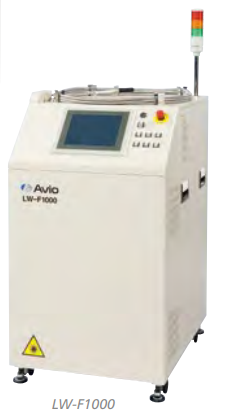

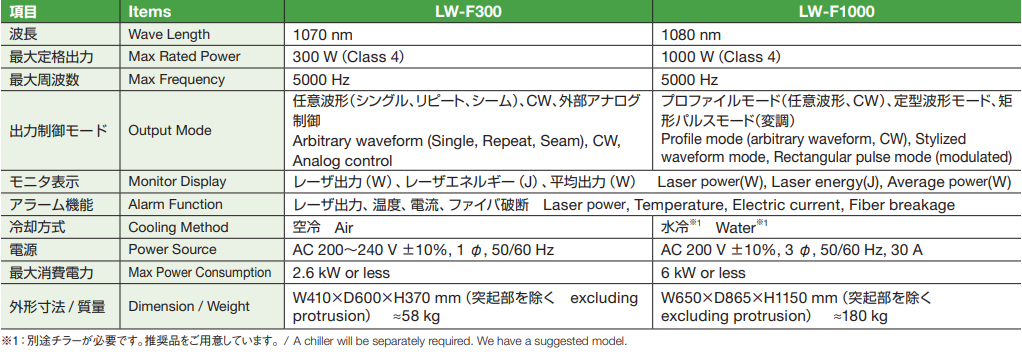

SKU: LW-F300/LW-F1000 Status: Out of stock

Describe
Review

The industry's first air-cooled, single-mode fiber laser welder to feature high speed digital feedback control of optical power!

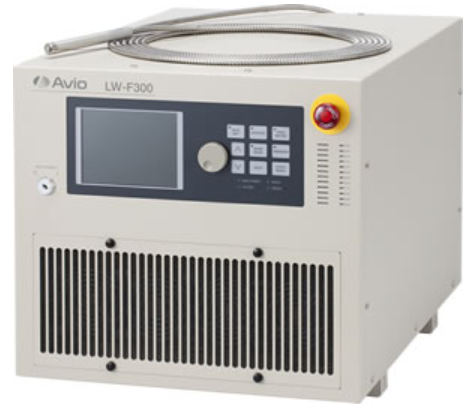

Fiber Laser Welder LW-F300

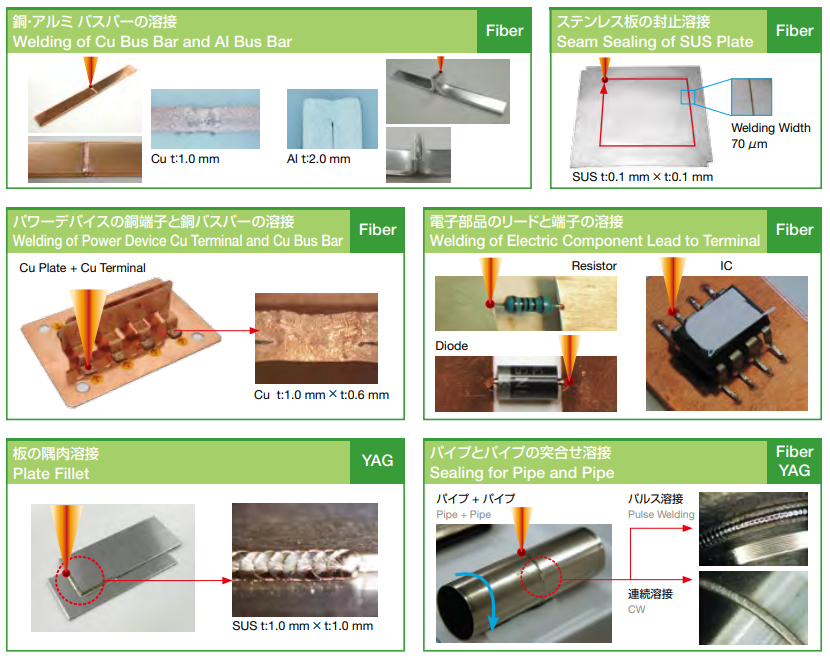

Ideally suited for welding of ultra-thin metallic foil and high reflection material (aluminum and copper)

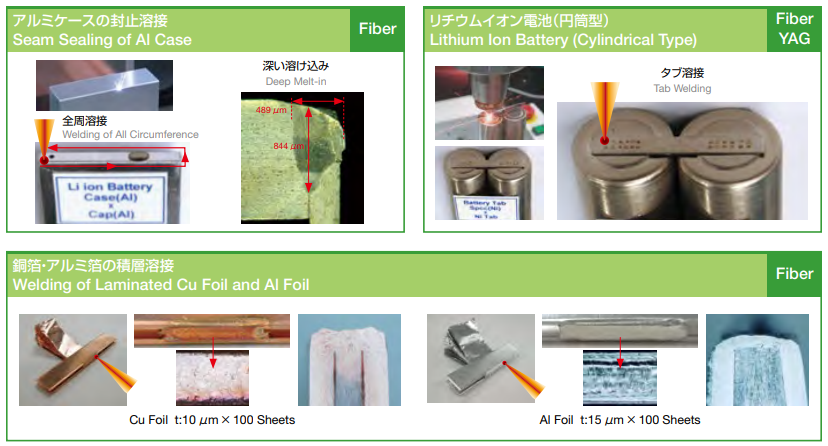

Nippon Avionics Co., Ltd. (Head office in Tokyo, Japan; hereinafter referred to as Avio), a subsidiary of NEC Corporation, is proud to announce today's release of Fiber Laser Welder LW-F300, which enables non-contact micro welding of metallic materials and is suitable for use in manufacturing smart phones and other information equipment. It is also suitable for use in the manufacturing process of electronic components, rechargeable batteries, and fuel batteries for the automobiles which are becoming lighter and more computerized to meet the increasing demand for Eco-friendly car.

Avio is the only comprehensive manufacturer of micro joining products in the world (*) offering four (4) types of welding solutions, including "resistance welding", "laser welding", "pulse heat (hot bar/reflow) soldering" and "ultrasonic welding". Avio provides the most suitable joining solution to meet the customer's needs by proposing the proper welding method according to the demands of weld geometry, size, strength, external factors, etc.

Among laser welders whose demand has increased in recent years, fiber laser welders, such as Avio's new Model LW-F300, have become popular because of their narrow beam diameter and high energy density features that enable high-quality welding of micro work pieces and highly reflective material such as aluminum and copper.

The new Fiber Laser Welder LW-F300 offers excellent stability and weldability by using a unique optical power high-speed digital feedback control function (control cycle 2 μsec). This is an industry first (*) for single mode fiber laser welders with an air cooling structure.
