Diode Laser Welder

Contact

SKU: LW-D30A/LW-D100 Status: Out of stock

Describe
Review

For Many Different Types of Soldering and Plastic Welding!

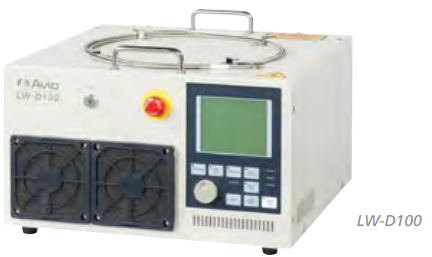

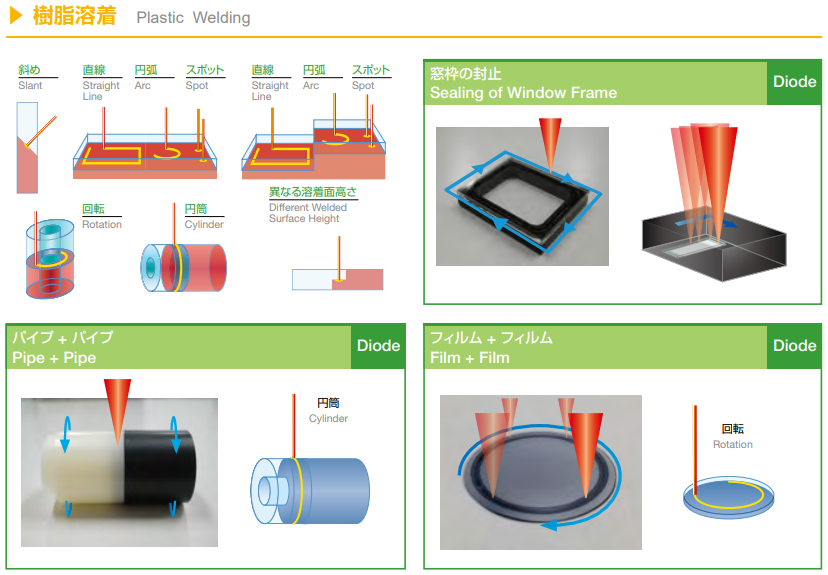

LW-D series of laser diode welders irradiates the laser emitted from the laser diode onto a plastic part and welds it in a non-contact manner.
This is an air-cooled, compact laser welding machine that can be easy operation. It is most suitable for soldering and plastic welding.

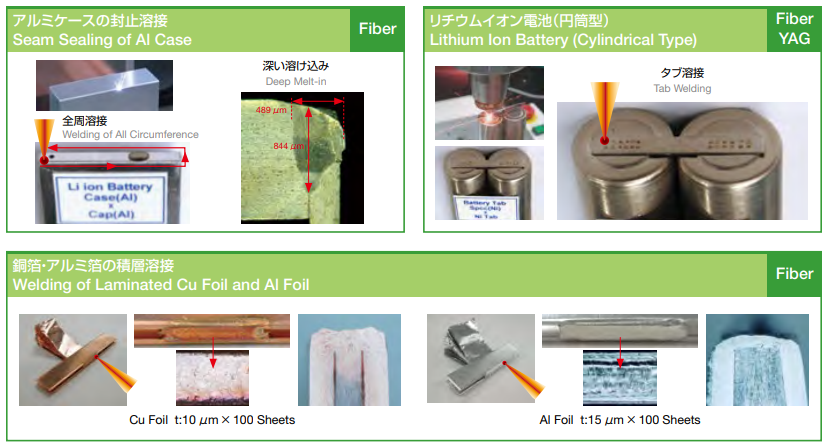

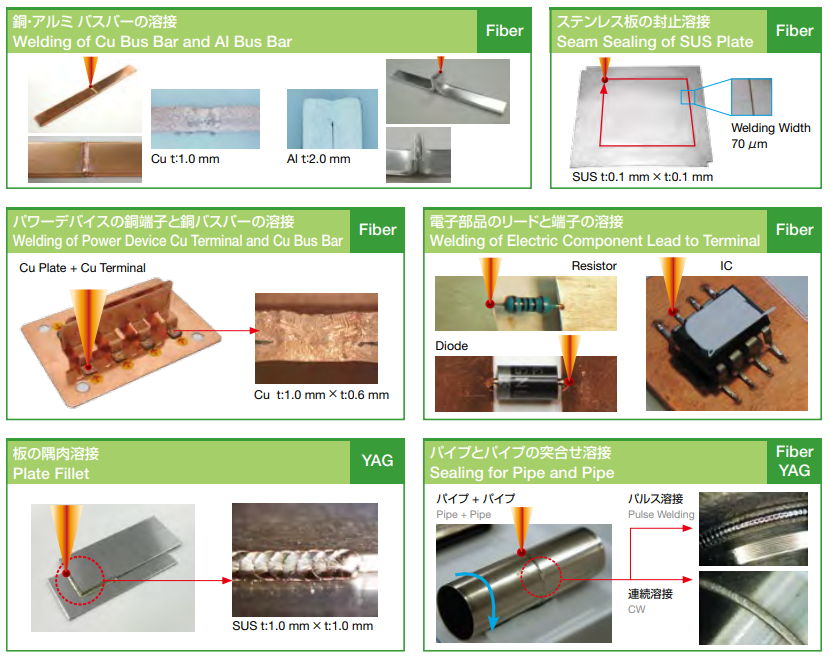

Applicable to Various Shapes and Material
Three types of output mode are available(Profile, Continuous, Pulse)
Laser Output Waveform is Visualized
Preset numerical data is converted into waveform and displayed
Actual output waveform is trace displayed
Simple Operation
Laser can be output immediately after switch ON
Easy-to-operate jog dial is equipped
Guide light to confirm laser output position is provided
Suitable to be Equipped on Automated Machine
RS-232C, I/O equipped
Various monitoring (alarm) functions
Desk Top Type

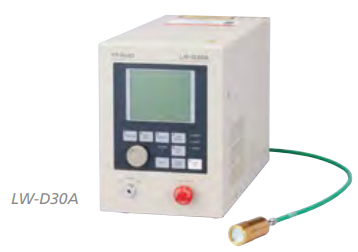

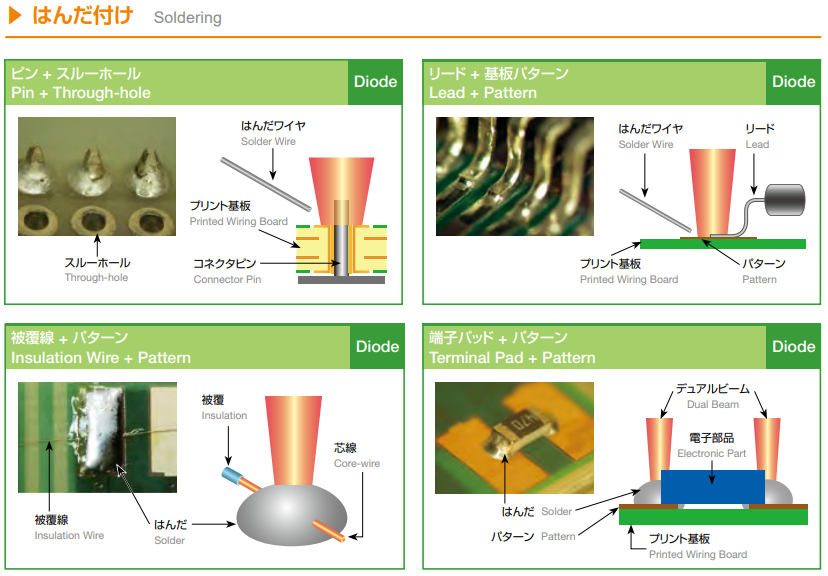

Compatible to Pb Free Solder

Items	LW-D30A	LW-D100
Max Rated Power	26W	100W
Features	Small spot diameter and high power density In addition to the standard spot diameter model (MinΦ800μm), small spot diameter with optional lens (MinΦ400μm) is available, too Light weight, air cooled, compact Small foot print contributes in securing work area and smaller size of the total machine Output head is attached as standard	Completely air cooled with high output of maximum 100W Small spot diameter and high power density In addition to the standard spot diameter model (fiber core diameter Φ400μm), small spot diameter model (fiber core diameter Φ200μm) is available, too

Specifications:

Items	LW-D30A	LW-D100
Wave Length	980 nm
Max Rated Power	26 W (Class 4)	100 W (Class 4)

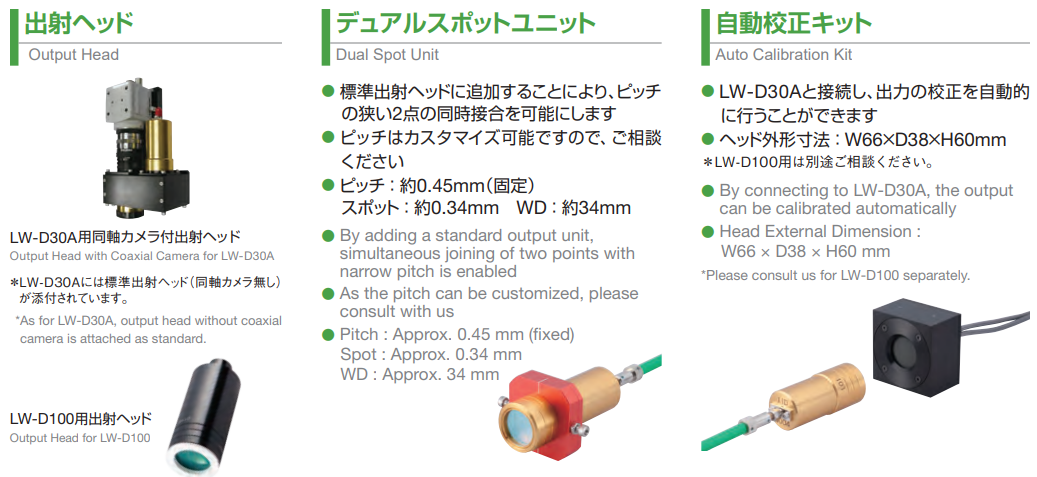

Output Head	Attached	Sold Separately
Optical Fiber Core Diameter	φ 400 μm	Two types, Φ400 μm、Φ200 μm
Core Diameter	When standard output head is used : φ800 μm (WD 80 mm) When additional option lens is used : φ400 μm (WD 35 mm)	When separately sold output head is used : (imaging magnifi cation switchable between ×1 and ×2) Fiber core diameter Φ400 μm type ×2 Φ800 μm / ×1 Φ400 μm Fiber core diameter Φ200 μm type ×2 Φ400 μm / ×1 Φ200 μm When×2 WD 185 mm / When×1 WD 83 mm
Guide Beam	635 nm
Output Condition	15 Data
Output Setting Range	Current : 3.0 - 56.4 A (0.1 A step) Power : 0.0 - 26.0 W (0.1 W step)	Current : 0.10 - 10.30 A (0.01 A step) Power : 0.0 - 100.0 W (0.1 W step)
Time Setting Range	0.000 - 99.999 s (1 ms step)
Interface	I / O、RS-232C (max 57600 bps)
Output Mode	CW output, Pulse output, Profi le waveform output (max 256 point setting)
Monitor Display	LD drive current, Laser power (Digital display, Graphic display)
Alarm Function	Interlock error, Control error, Over current error, Over power error, LD high temperature error, FET high temperature error
Cooling Method	Air
Power Source	AC 100 V ±10%、50/60 Hz	AC 100 - 240 V ±10%、50/60 Hz
Max Power Consumption	800 W
Dimension / Weight	W200×D430×H280 mm (excluding protrusion and optical system) 19 kg (excluding optical system)	W435×D430×H255 mm (excluding protrusion and optical system) 30 kg (excluding optical system)
