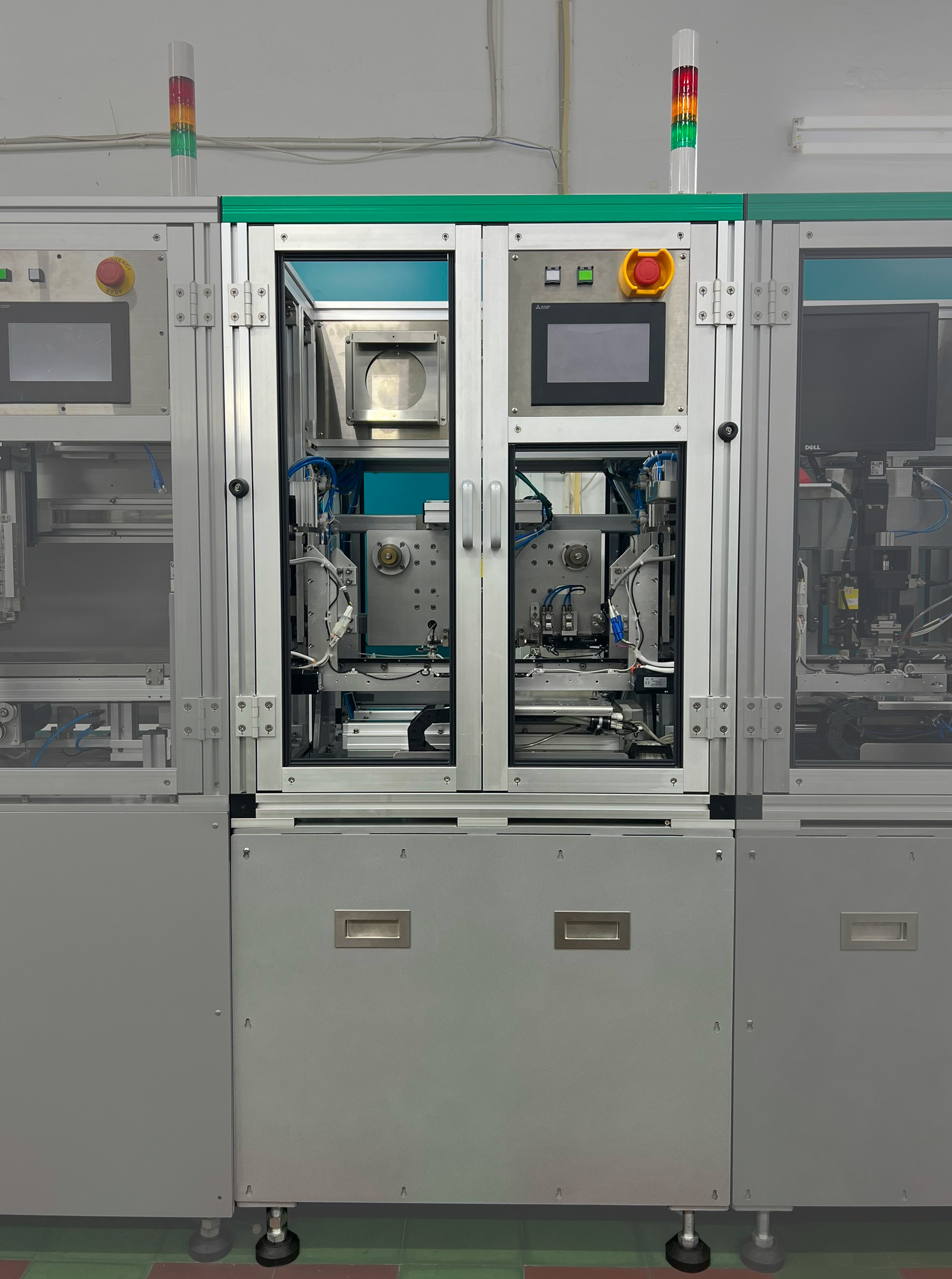

Introducing ACF Precision Laminator - Ito V-star Lineup: Your Customized Solution for Precise ACF Lamination
In the realm of electronics manufacturing, precision is not just a requirement but a defining characteristic. The ACF Precision Laminator represents a revolutionary machine designed to excel in the initial component of the ACF (Anisotropic Conductive Film) Vstar semi-production line. This exceptional device offers precise ACF laminate cutting functionality with an unmatched level of accuracy. Customized to operate seamlessly within any universal system, it redefines the standards of precision in ACF lamination
Independent Operation: The Laminator is capable of standalone operation, making it a versatile machine for various applications.
Upgrade Flexibility: The machine's modular design allows for easy upgrades to suit specific applications, such as automatic laser marking, visual inspection, data reading, automatic screw tightening, automatic dispensing, and automatic soldering, welding, or staking.
Third-Party Integration: The ability to interact with third-party systems, both mechanically and electrically, enhances the machine's overall capabilities. This integration not only simplifies the incorporation of additional equipment but also boosts the overall efficiency and productivity of your manufacturing process.
| Model | VL-3030 |
| ACF cut size accuracy | ±100μm/3σ |
| Laminate accuracy | 1. ±100μm/3σ (With Pre-Alignment) |
| 2. ±200μm/3σ (Without Pre-Alignment) | |
| ACF Inspection & Pre-alignment Function | Option |
| Pre-cut / die-cut ACF tape Function | Option |
| Heating Method | Constant Heat |
| Setting Temperature Range | Ambient to 200°C (1°C increments) |
| Bonding Force Range | 10 to 80 (N) |
| Heat Tool Size | 60(L) x 15(W)mm |
| XY Motion | Stepping Motor |
