Lase Stations RT400 (ACI)

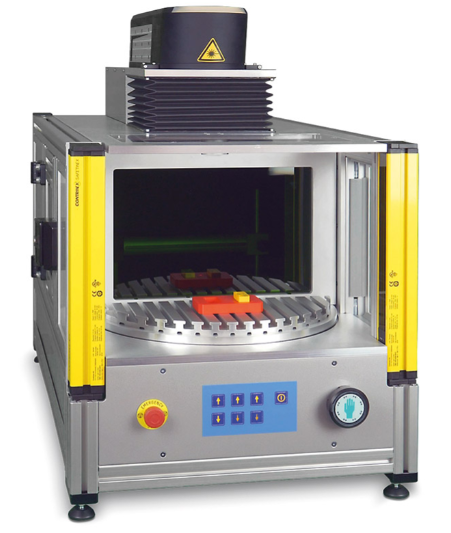

The RT400 is a rotary indexing table that is designed to allow laser marking of workpieces using a process that requires virtually no interruptions. The RT400 can be loaded and unloaded while the laser marking process is still in progress, and the time this saves is a boon to series production.

Properties
Featuring two loading positions, the RT400 rotary indexing table rotates 180° at a time to the machining positions. During the laser marking process, once an article has been marked, it can be removed from the laser station and replaced with an unmarked article. A simple touch button allows the process to be controlled effortlessly with one hand.

An integrated light barrier affords additional protection to users. If the light barrier is triggered, all processes will stop. The process will resume when the user presses the start button. A transparent partition with a laser safety window allows for optimal monitoring of the marking process. A key-operated switch enables the user to switch between manual and automatic operation as required.

The RT400 has a programmable Z-axis, which enables workpieces with height variations to be marked. The customer's specific requirements coupled with the application in question determine which laser marker is most appropriate in each case.

Software
The laser system is controlled using our proprietary Magic Mark marking software. This software enables workpieces to be marked with text, graphics, codes (data matrix codes, barcodes), serial numbers and logos. It can also be used to achieve uniform markings around the perimeter of workpieces with rotational symmetry. An intelligent user privilege management system facilitates the creation of different user groups. This way, the laser system can be adjusted to cater for the user's specific requirements. When using the laser system in automated production lines, fully automated operation – including data exchange with various data sources – can be achieved without any difficulties. Optionally, plugins such as the code or script module can be used to add extra functions to the Magic Mark software.

Find out more about software add-ons

Tabletop system
Scope for connecting two presence detection sensors
Digital inputs and outputs for controlling the table rotation
Key-operated switch for switching between manual and automatic operation
Scope for connecting an external extraction system
Single-handed operation using a touch button
Transparent partition with a laser safety window for optimal monitoring of the marking process
Side door to facilitate set-up
