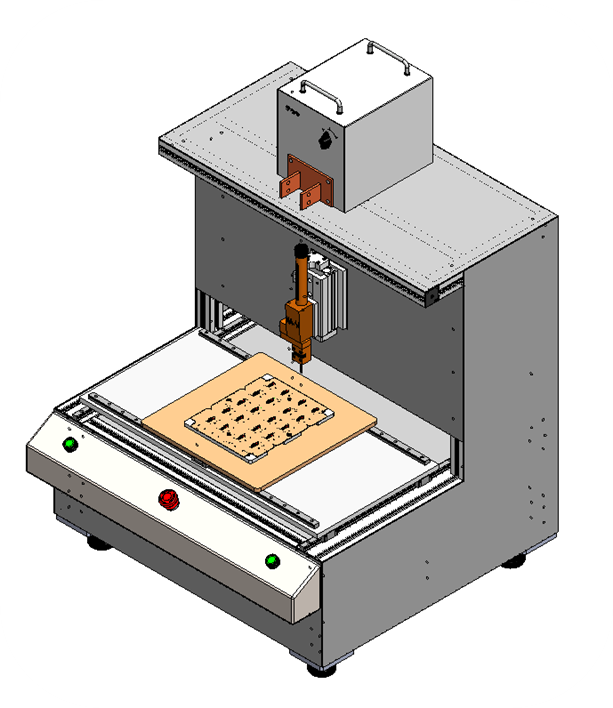

PCB Router- Table Top Model

PCB Router- Table Top Model

Contact

SKU: Status: Out of stock

Key Features

Solution for stress free depanelization
Fixture-based highly efficient dust vacuum system
Clean and precise depanelization for densely populated PCBs
User-friendly operation
Extended bit life by manual router bit depth adjustment
Improved tact time
Low maintenance required
automatic/optional
Calibration free linear robot

Describe
Review

Specification:


Max PCB size	250mmx350mm (9.8″x13.7″)	350x500mm (13.8"x19.7")
Max PCB Thickness	Up to *6.0mm
Max Component Height	21mm top side, 50mm bottom side
Router bit diameter	0.8mm - 3.0mm
Max Router bit traveling speed	500mm/sec
Max Router bit cutting speed	50mm/sec
Max Spindle speed	60,000rpm
Mechanical repeatability	±0.02mm (X/Y)
X / Y / Z control	X/Y: Servo Motor Z: Cylinder
Power & Pneumatic requirement	AC115V 60Hz, 0.5MPa [72psi]
Equipment size & Wieght	720mm(W) x 640mm(D) x 522mm(H) 60KG	820mm(W) x 740mm(D) x 533mm(H) 75Kg
Dust Collector (VNA-15) size	650mm(W)x400mm(D) x1,390mm(H) 90Kg
