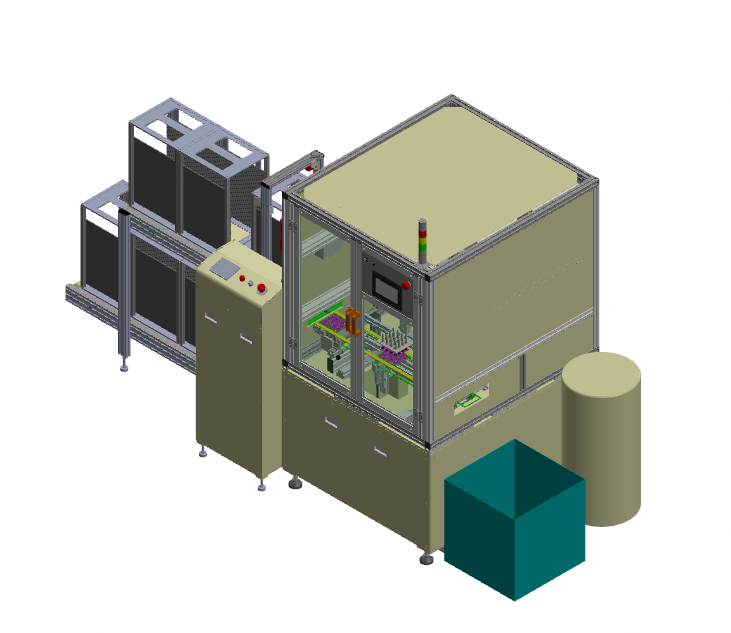

Auto Router Machine

Contact

SKU: Status: Out of stock

Key Features

Solution for stress free depanelization
Fixture-based highly efficient dust vacuum system
Clean and precise depanelization for densely populated PCBs
Advanced image-processing software offers point-and-click operation for programming router paths
Automatic alignment compensation by CCD camera
User-friendly operation
Extended bit life by automatic router bit depth adjustment
Improved tact time
Low maintenance required
Bit broken/slip sensor
QR code reading
Calibration free linear robot

Specification:

System Characteristics	Option1	Option2
System Characteristics	Option1	Option2
Dimensions	1200 x 1000 x 2000 mm (WxDxH)
Weight
Power Supply	1-phase 220V, 50/60Hz
Air Pressure	5 ~ 6 kg/cm2 (80PSI)
Axis Configuration	9 -axes AC servo motor and Cylinder	10 -axes AC servo motor and cylinder
Cutting Accuracy	±0.05 mm
Repeatability	±0.02 mm
Spindle Motor	350W
Number of Spindle	1 (as standard)
Noise Level	80 ± 3dB

Exhaust Specifications
Dust Collector	5HP, 3-phase 220V or 380V, 50Hz or 60Hz
Dust Removal	Bottom flow
P&P Robot 1 Specifications
Axis	2-Axis Cylinder	X-Y- Axis AC servo motor, Z-axis Cylinder
Alignment vision	No	Yes

P&P Robot 2 Specifications
Axis	X-Y- Axis AC servo motor, Z-axis Cylinder	X-Y- Axis AC servo motor, Z-axis Cylinder
Alignment vision	No	Yes

Conveyor
Main Size	W240xL1000
Width Adjustment	Setting on HMI
